Fruit Crusher and Juice Extractor

Introduction:
This kind of hammer crusher is our developing design since the 1990s with the international advanced level of fruit and vegetable crusher, has a novel structure, compact, energy-saving, production capacity, using a wide range of features. In addition to the machine frame, the rest all made of stainless steel, can be used alone, but also convenient on-line.

Working Principle:
When the motor is driven by a pair of pulleys constant rotation of the spindle, the spindle is equipped with high-speed rotary knife. Material from the elevators freely into the hopper, the high-speed rotation of the knife being chopped, due to centrifugal force, the material of the mesh waist -shaped hole into the hopper and then into the next by a conveying pump processes.

Technical Parameters:
Capacity: 2t per hour
Power:  3Kw, 380V, 50HZ
RPM: 2900
The outer surface using sandblasting

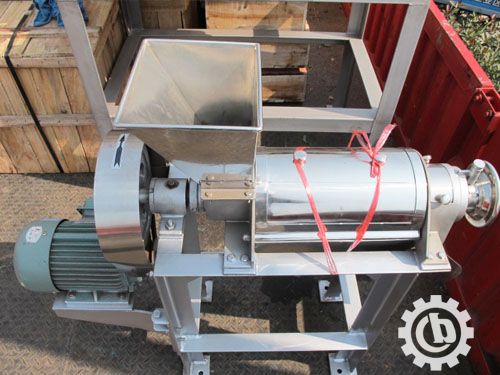

Fruits Juice Spiral Extractor

1.The machine is mainly used to crush fruits, vegetables, herbs and other raw materials. Like pineapple, apple, tomato,orange, etc.
2.Advice raw material be crushed first, or the juice yield and efficiency will be relatively low.
3.All material contact part is stainless steel SUS 304.Slag and juice separate automatically.
4.Little space occupation, good performance, every part of machine is well made.

Technical Parameters
Capacity: 500Kg per hour
Power:  1.5Kw, 380V, 50HZ
Spiral diameter: 87.5mm
Filter diameter: 0.6mm
RPM: 400
Weight: 100Kg
Dimension: 1100*265*920mm
Material: Fruit contact part are stainless steel.
