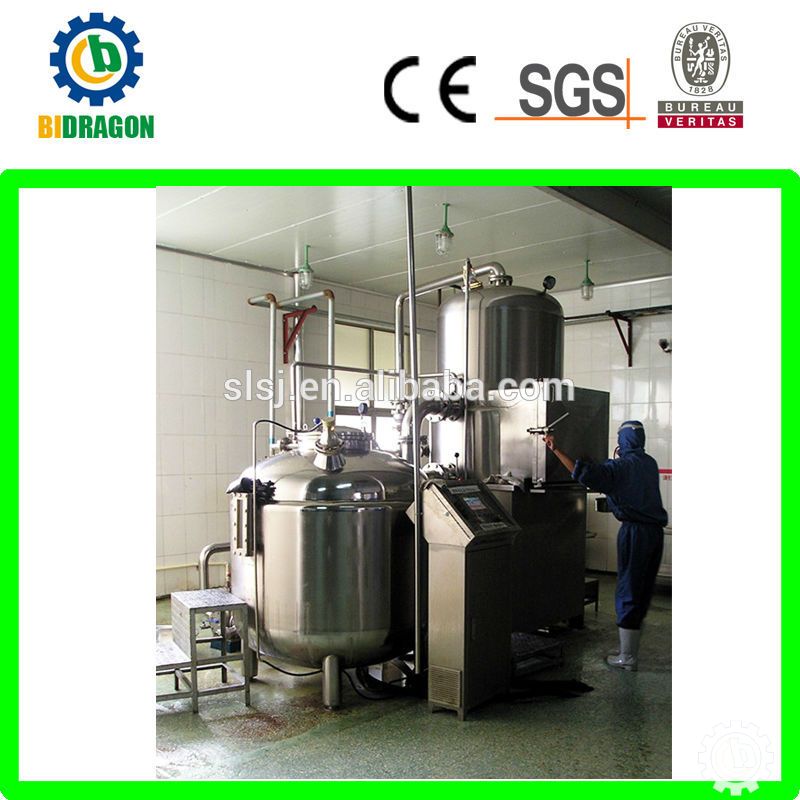

Fruit and Vegetable Vacuum Frying Machine

Application:
Fruit: apples, bananas, kiwi, pineapple, jujube, strawberry, pineapple and so on.
Vegetables: such as carrots, radishes, sweet potatoes, pumpkin, garlic, onion, mushroom, melon, okra, etc.
Meat: such as beef, fish, shrimp, octopus and so on.
automatic_banana_chips_Vacuum_Fryer_machine


Fruit- Vacuum-Frying-MachineFruit- Vacuum-Frying-Machine-1
Vegetable- Vacuum-Frying-MachineVegetable- Vacuum-Frying-Machine=1

Working Principle:
Fruits and vegetables chips it with fresh fruits and vegetables as the main raw material, edible vegetable oil as heat medium, the use of low-temperature vacuum frying (VF-Vacuum Fryer) and other advanced technology, in a very short period of rapid dehydration and drying, to obtain low fruit and vegetable food moisture, low oil content, crisp and not greasy, preserved fruits and vegetables original shape, color, smell, taste, and rich in vitamins, minerals, fiber and other nutrients, with a low sugar, low salt, low-fat, low-grade fever and other features.
Technique Parameters:
Model BD-500C BD-800C BD-1200C
specification(mm) ¢500 ¢800 ¢1200
Baskets volume (mm) ¢400*240 ¢700*240 ¢960*660
Quantity of basket (pieces) 2 2 2
Vacuum (Mpa) -0.09~0.098 -0.09~0.098 -0.09~0.098
Working temperature (℃) 80~120 80~120 80~120
Power of  vacuum pump (KW) 4 5.5 15
Heating source electricity electricity / steam steam
Electrical heating power (Kw) 15 36 100
Raw material processing capacity (Kg / h) 30-45 45-120 120-300
external dimension(mm) 1500*1000*2500 2000*1500*2500 3700/2400/2500
