Introduction:

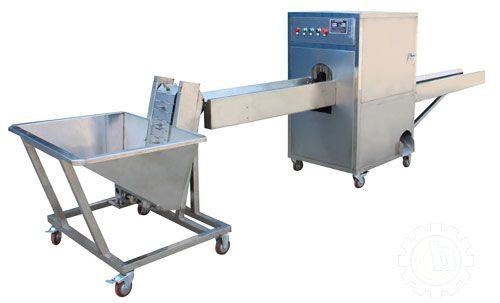

"Analog hand" onion top tail cutting and peeling machine as its name suggests, is to imitate a human hand movements on the full range of peeling the onion , the realization of the onion peeling and top tail cutting without damage technology. The machine cleverly designed novel, coherent action convergence , non-stop delivery of onion peeling during the process.

Features:
1.This machine no need onion grading , does not matter for onion size, wet or dry , breeds , can perfect peeling.
2. Peeling and top tail cutting automatically , one-time auto-complete , continuous work uninterrupted .
3. " cortical control " on the machine can be freely controlled depth peeling level , just peel the dry skin and then peel second layer of skin or the third layer of skin perfectly.
4. Top tail cutting remove a small amount, high yield. Automatic identification equipment of onion size resectioninstitutions
5 , The machine uses no knife to peel , peel the onion without marks, no damage, perfect appearance.  6 , High efficiency,equipment by one -man operation, one hour can produce around 3500-4000 pieces onion of finished product .

Technique Parameters:
Model:BAP-1
Onion diameter:30-50mm or 60-120mm
Capacity:around 3500-4000 pieces per hour
Voltage:380V, 50HZ, 3 Phase
Power:1.86KW
Needed air pressure: ≥0.8MPa
Air capacity:6-8CBM/M3
