Process flow:Manual feeding to the onion peeler hopper---peeling machine—automatically fall on top tail cutter machine---top tail cutting machine---conveyor---onion dicer---conveyor---washing machine---directly to air blowing machine---sorting conveyor belt---to hopper of drying machine---drying machine---falling out automatically to conveyor---grinding machine---powder collect to hopper of conveyor---packing machine

1.Onion Peeler

Application:
To all kinds of onions (30-50mm,60-120mm), no need to grade onions, no requirement to onion’s original place, applicable to both dried and fresh onions.

Specifications:
1 Application：30-50mm or 50-120mm
2 Output: around 500-700kg per hour
3 Powers:1.5 KW
4. Voltage: 380V, 50HZ, 3 phase Deceleration motor
5. Need customer to match with a compressor (buy local one by customer self is better)
6. Dimensions: 2060*1000*1940mm
7. Weight: 248KG
8 .Air Pressure 0.8 MPa, air capacity: 3 cubic meters per minute.

2.Machinery Description
BOC-1 onion ends cutting machine is the most advanced onion processing equipment with big production in the world，no special requirements in the size,dry or wet onions,or area. In any states, the onions can be peeled and cut in one-time. And it peels clean, no damage. This kind of machine has been widely used in vegetable processing industry.

Main Technical Parameters
1. Power supply:  380V，50HZ
2. Power:  1.11Kw
3. Output: 500-700kg/h
4. Dimensions: 2050*900*1420mm
5. Weight: 156kg

3.Onion Dicing Machine

Brief Introduction:
Large-scale fruit and vegetable dicing machine. It can cut carrot, potato, taro, fruit, onion, mango, pineapple, apple, ham, giantarum, pawpaw, bamboo shoot, ect into small cubes. The cube have good shape

Technical Parameters:
Dimension: 680(L) x700(W)x1000(H)
Cutting Size:3~20mm,not adjustable（customer need to order knife sets for fixed onion pieces size）
Weight: 120Kg
Power: 3 Phase, 220V/380V
Capacity: around 500-800 Kg/Hr
Motor:0.75KW

4.Onion Washing Machine

Introduction：
Bubble washing machine is the fruit and vegetables important machines in the whole product line .The principle is the use of the equipment front container in the amount of water in the tank, built-in high and low pressure air pump, raw materials through the box, it will lower the bubble machine and water combine to do rollover state, and with the net with constantly move forward, when out of the water, the high-end features sprinklers, high pressure washing.

Technical Parameters:
Power: 2.05KW/380V 50HZ
Capacity: 500kg/h
Dimensions: 2500*920*1400mm
Weight: 500kg

5.Onion Air Blowing Machine(remove surface water)

Introduction：
This is food cooling or remove surface water line , whole stainless steel material, suitable for food cooling or remover surface water after washing ,cooking , blanching , packaging, sterilization.

Technical Parameters:
Power:6.75KW/380V 50HZ
Capacity:500kg/h
Dimension:4000*1000*1500mm

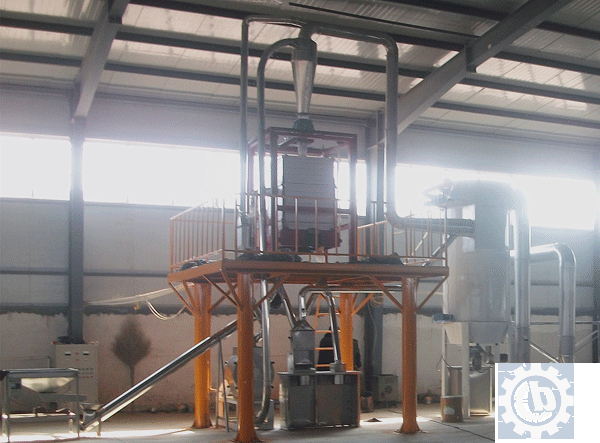

6.Onion powder grinding system includes:Feeding Machine Spiral Conveyor Grinding Machine Sifting Machine Dust Remover Fan
Cyclone Air Flow System Spare Part (pipes, augers, control cabinet etc.)
