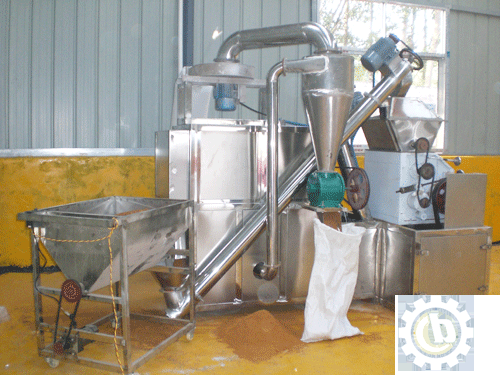

New whole stainless steel type,600mm roller.   Old part stainless steel type,500mm roller,Electric control roller gap.



Newly chili grinder Introduction:
It is widely applied to the dehydrated ginger, garlic, chili peppers, cumin, star-aniseed, coriander and Chinese wild peppers. This kind of roller grinder is quite popular among spicy processing factories, and its superb quality, simple operation and competitive price and keep material natural smell and color are the most attractive points to customers. It usually matched with chili crusher, which first hammers chili to pieces and flakes, which help to increase the grinding efficiency of matched roller grinding machine.

Main Technical Parameters:
1.  Output: 150-200KG/H
2.  Size: 30-50mesh(feed inlet less than 10mm)
3.  Roller length: 600mm, roller diameter: 220mm
4.  Grinder with material level sensor
5.  Grinder with four alloy rollers
6.  With electric control, automatic adjust the rollers gap
7.  The total power: 17.3 KW, 380V, 50HZ, 3 phase (or based on customer requirement)
8.  Weight 　about 1.3t     　 bulk 7 m3
9.  The size of workshop. It needs a workshop; the length of the workshop is 5m. Electric feeding trolley
     The span is 3.5m, the height is 3.5m.
10. Man power requirement: 1 person.

Work Theories and Usage:
The 2 pairs of rollers will press and shear to the raw materials, which will get to the final powder goal. The materials discharged from the rollers will enter to the prolonged cylinder to sift. The qualified mesh powder will be packed, and the unqualified powder will be sent to the roller again by the auger automatically.
